RF amplifier for 10 m (CB20232E)

Details
Written by: Newton C. Braga

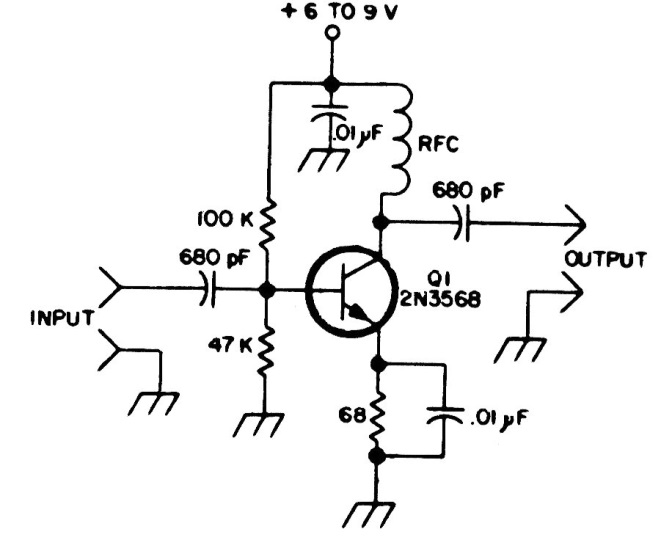

This amplifier for the 10 m (30 MHz) band has a gain of 12 to 15 dB having been found in an American documentation. Other RF transistors can be used like 2N2222 or 2N2218.
