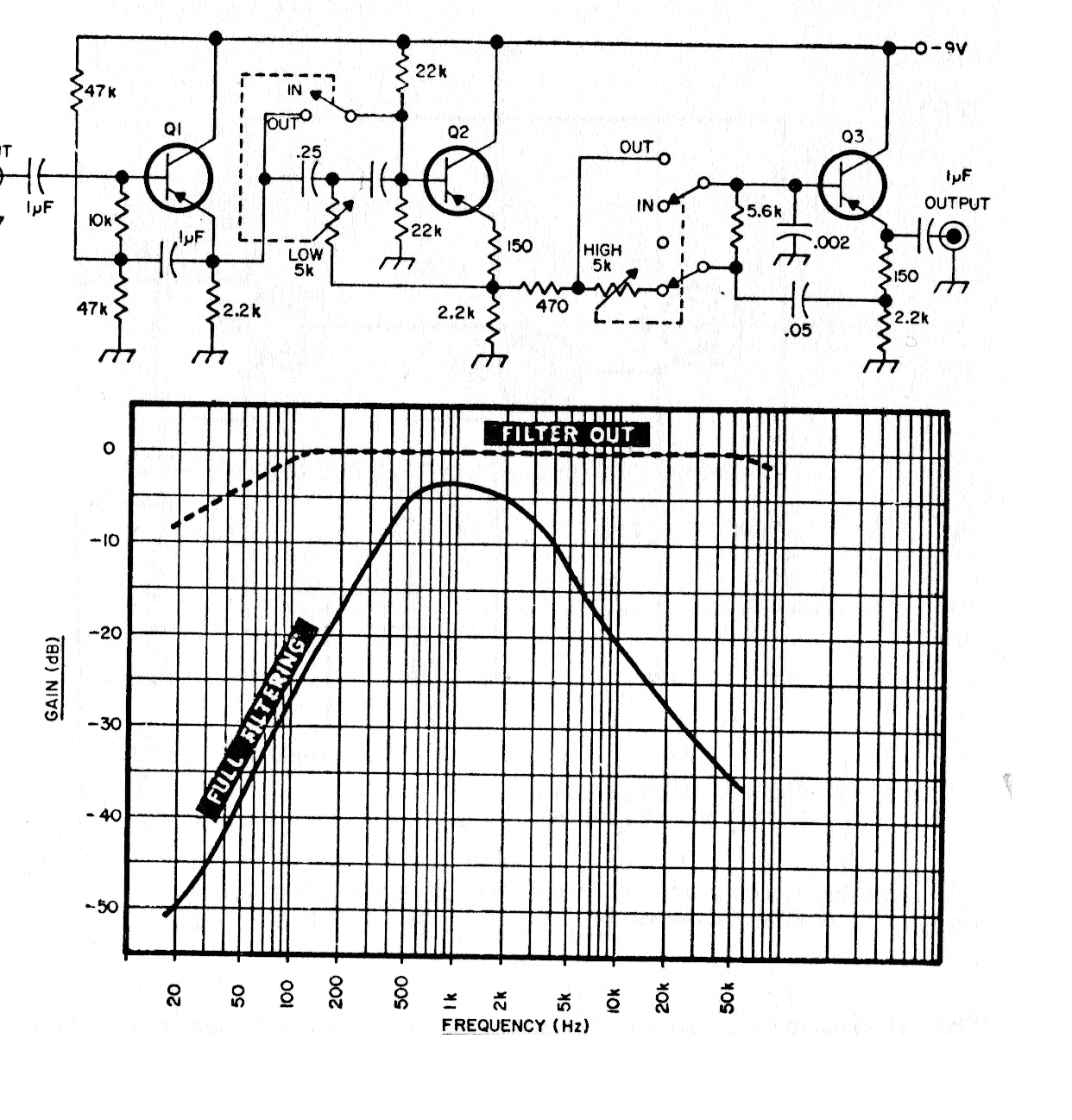

The response curve of this circuit is given together with its configuration that makes use of general-purpose transistors. The circuit has high-pass and low-pass functions depending on the settings and selection.
| Clique na imagem para ampliar |
Audio Filter 3 Transistors (CB20083E)
- Details
- Written by: Newton C. Braga
