Tachometer (CB20062E)

Details
Written by: Newton C. Braga

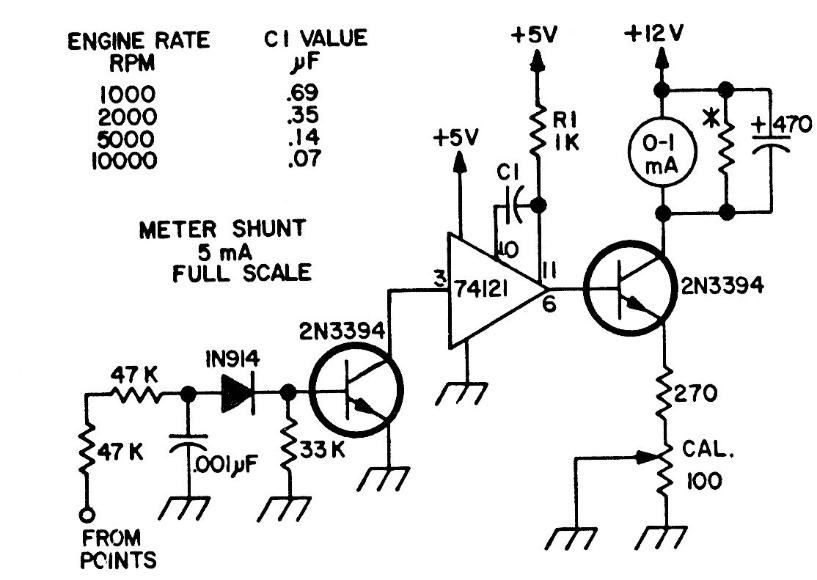

This 1975 tachometer for cars with platinum can serve as an idea for new projects. The components are from the era and a modern equivalent operational amplifier can be used.




| Clique na imagem para ampliar |
