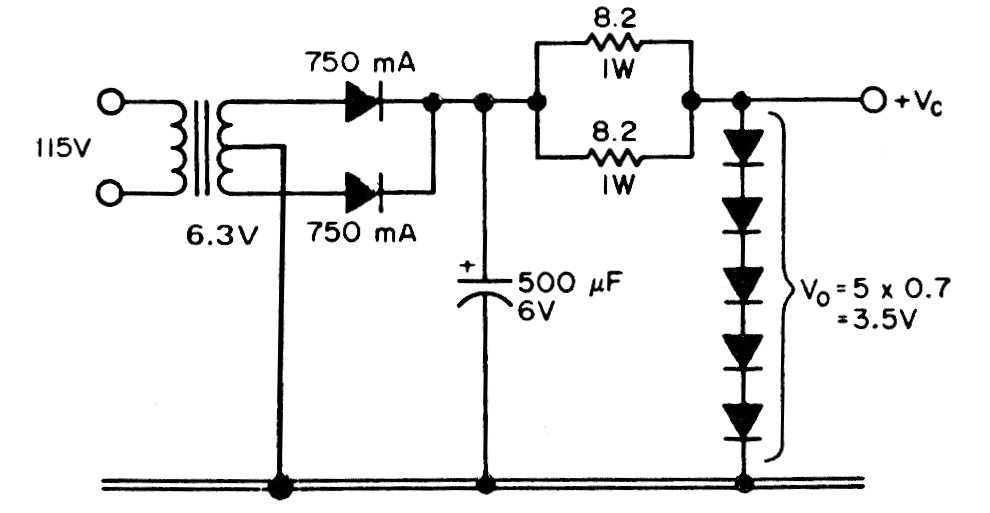

In this circuit we have the way to use common diodes to obtain low regulated voltages in a single source. The diodes must have maximum currents according to the application and the resistors have dissipation according to the output voltage.
