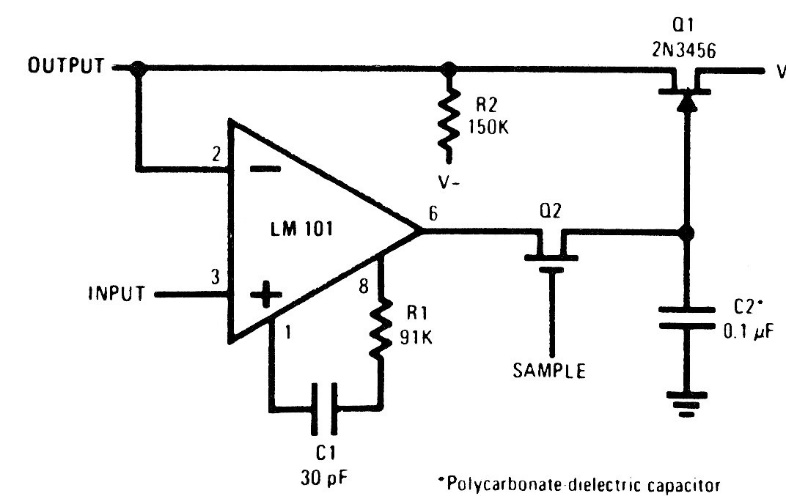

This circuit was found in documentation from the 1980s and can be implemented with modern operators and equivalent FETs. Capacitor C2 must be of low leakage type.
| Clique na imagem para ampliar |
Low Deviation Sampling and Holding CB20144E (CB20144E)
- Details
- Written by: Newton C. Braga
