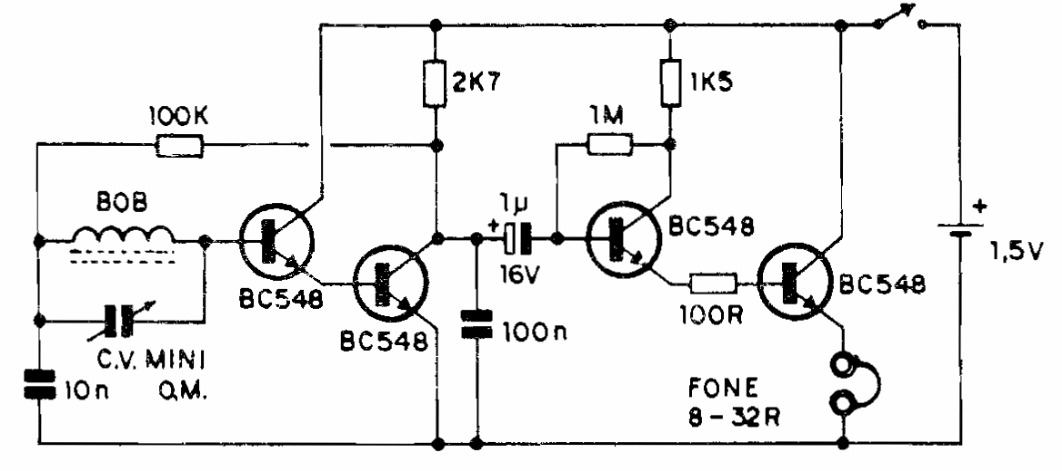

Indicated at the time of publication as a “walk man” for MW radios, this circuit is simple and can also be easily assembled. The coil consists of 80 to 100 turns of wire 26 or 28 in a small ferrite rod.
| Clique na imagem para ampliar |
MW mini receiver (CB20328E)
- Details
- Written by: Newton C. Braga
