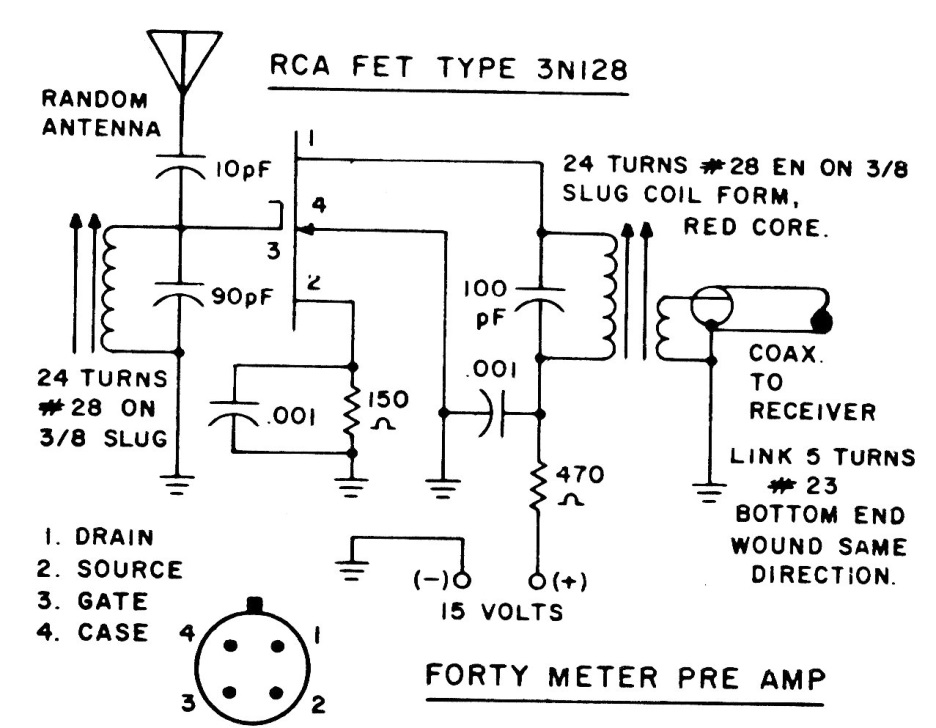

This amplifier circuit for the 7 MHz band, which corresponds to the 40-meter band of radio amateurs, uses an unusual MOSFET today. Equivalent can be used. The details of the coils are given in the circuit.
| Clique na imagem para ampliar |
40m Band preamplifier (CB20233E)
- Details
- Written by: Newton C. Braga
