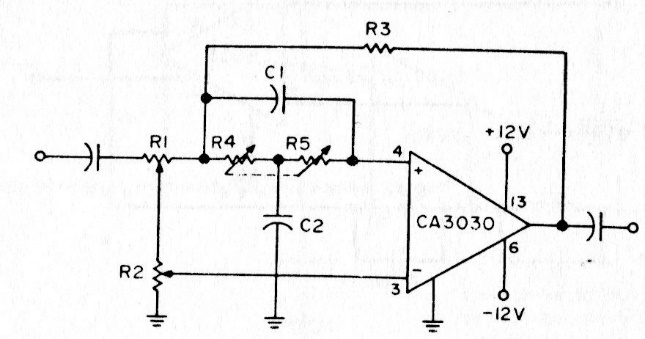

This rejector filter that was found in a 1980 documentation uses an operational one at the time. The operational can be replaced by modern equivalents. The non-indicated components determine the frequency range.
| Clique na imagem para ampliar |
Variable Q Notch Filter (CB20084E)
