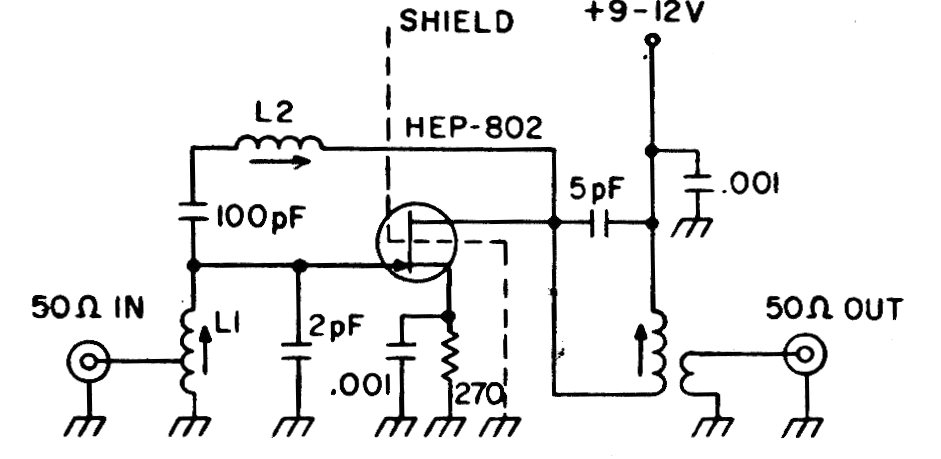

This circuit was found in an American documentation for radio amateurs of the 80's. The transistor, which is uncommon nowadays, is a double-gate MOSFET. Details of the coils are not given in the original diagram.
| Clique na imagem para ampliar |
150 MHz preamplifier (CB20275E)
