Preamplifier for 60 kHz band (CB20234E)

Details
Written by: Newton C. Braga

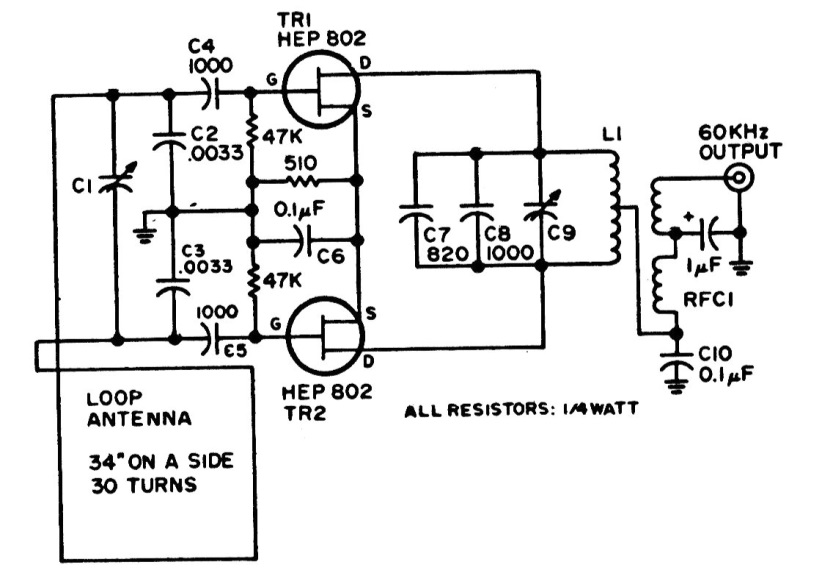

This circuit uses a loop antenna to receive and amplify signals from the 60 kHz long wave band. Transistors support equivalents like BF245. The supply is made in the central socket of L1 with a voltage of 9 to 15 V.
