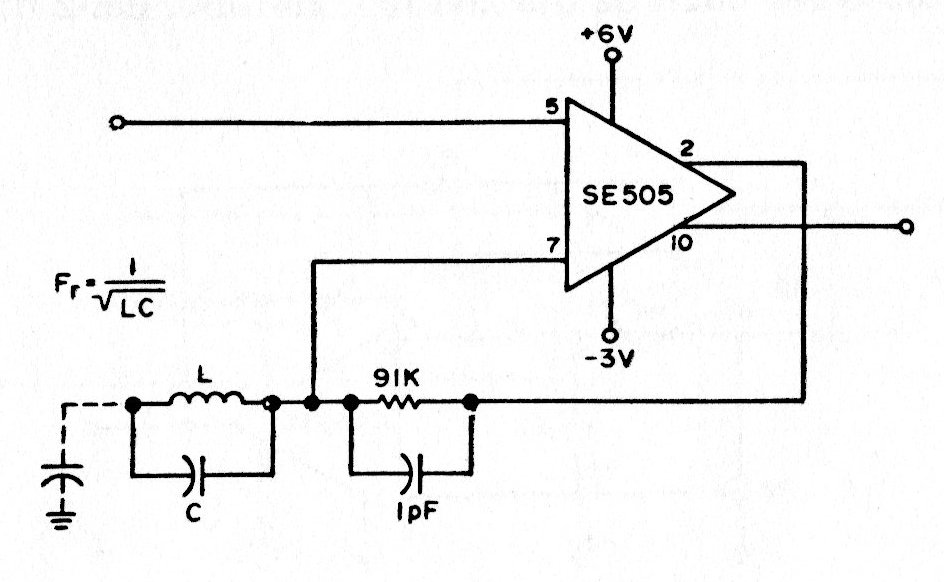

The operational amplifier used in this circuit is not common today. The frequency is given by the components L and C calculated according to the formula given in the diagram. The operational admits equivalent and must be powered by a symmetrical source.
