Optical shield (CB20698E)

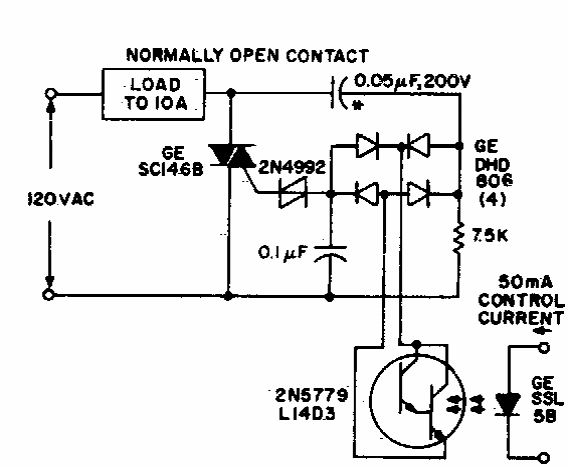

This circuit was found in American documentation from the 90s. The coupler is the type that uses a photo-Darlington.
