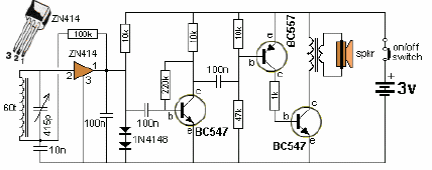

The ZN414 is an uncommon integrated circuit currently used in the elaboration of very simple MW radios, as it contains all the components necessary for the reception of signals. In this circuit, from an English documentation, an amplifying stage was added to obtain loudspeaker listening.
