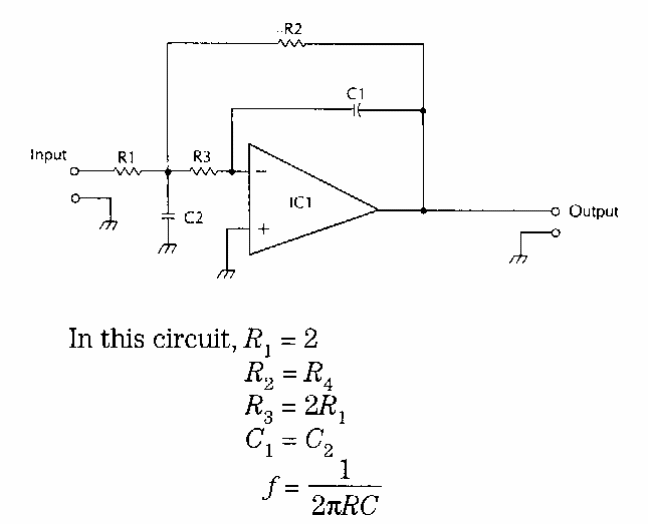

Found in old American documentation, this filter has a 8 dB per octave attenuation. The formulas for calculating the components are given next to the diagram and any operational amplifier can be used.
| Clique na imagem para ampliar |
Active low pass filter (CB20938E)
