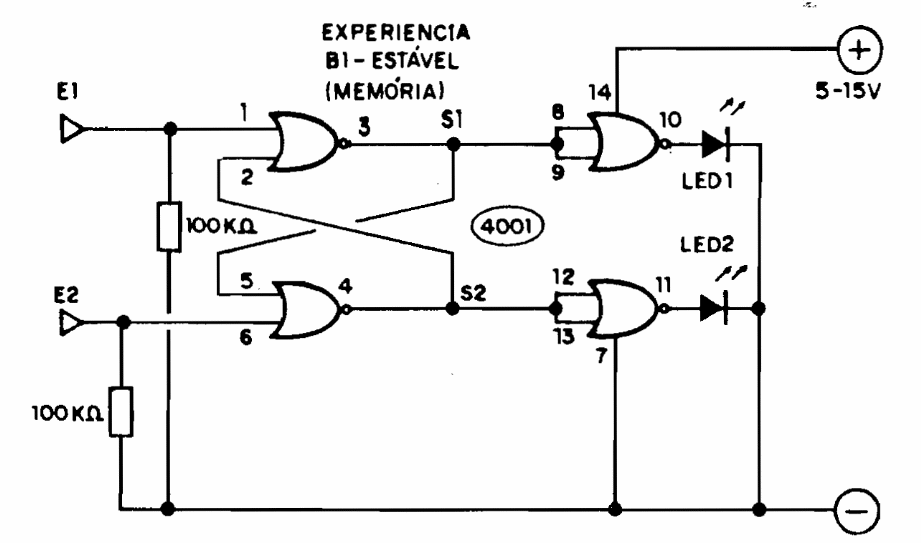

This experimental 1-bit CMOS memory was found in documentation from the 1980s. It will be convenient to connect in series with resistor LEDs of 470 ohms or greater to limit the current in these components.
| Clique na imagem para ampliar |
Experimental Memory (CB20330E)
- Details
- Written by: Newton C. Braga
