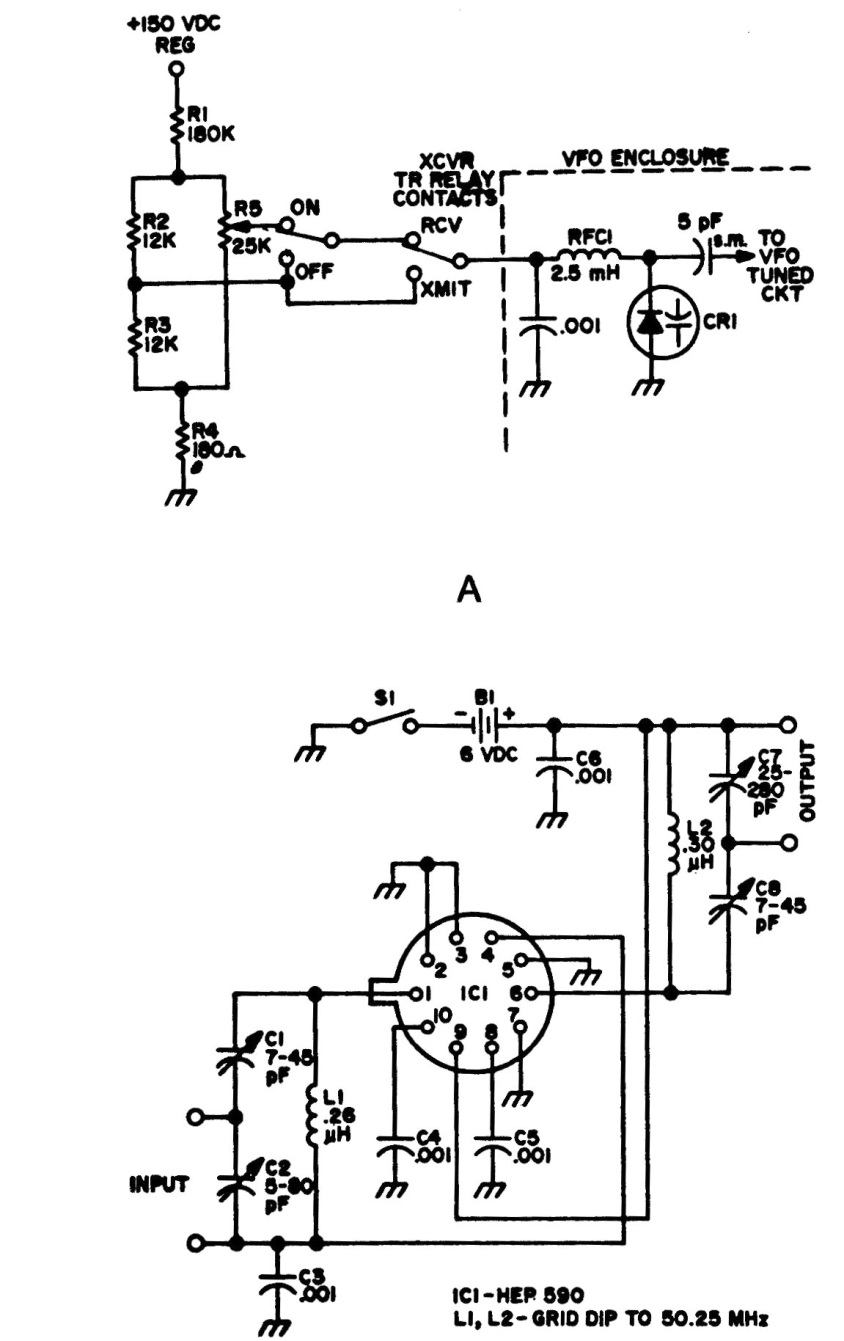

We found this circuit in an 80's documentation. The circuit has a gain of 30 dB and uses a varicap for tuning. Modern equivalent varicaps can be used, as the original type is not indicated. The integrated circuit used is of an unusual type today.
