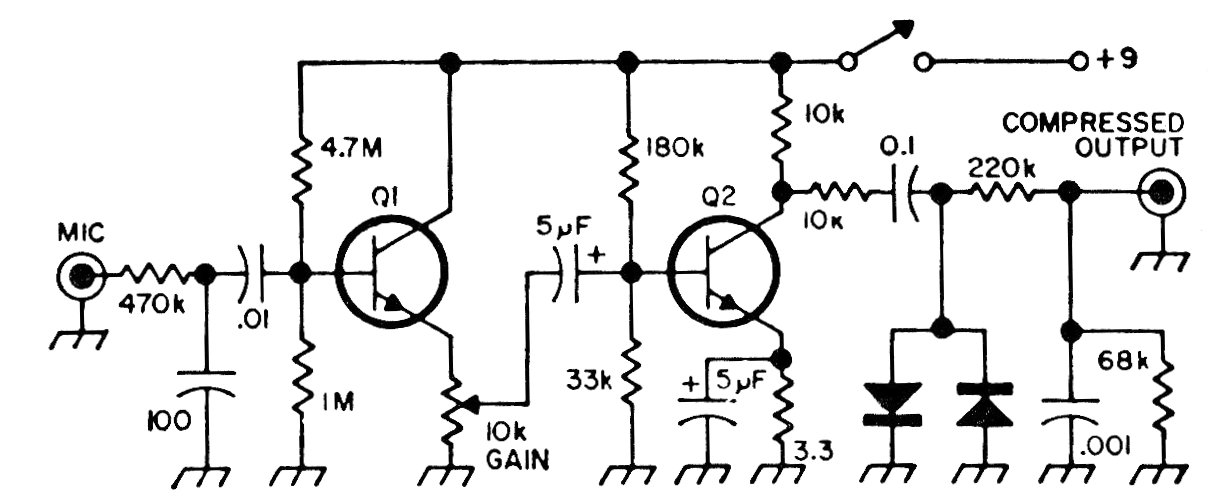

This limiter circuit with included preamplifier was found in an American documentation from 1975. The circuit uses general-purpose transistors of the time, which can be replaced by modern equivalents.
| Clique na imagem para ampliar |
Two Stage Limiter and Preamplifier (CB20007E)
- Details
- Written by: Newton C. Braga
