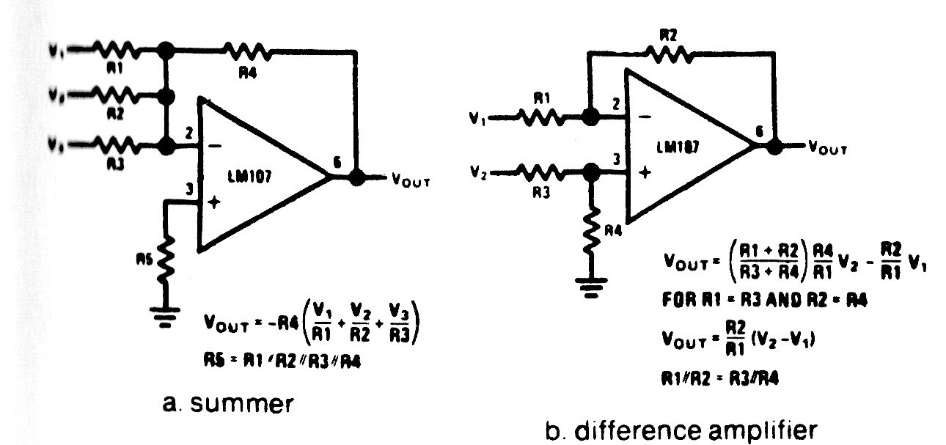

The two adding and differentiating circuits with operational amplifiers given below were obtained from American documentation from the 1980s. The circuits can be implemented with modern operationals requiring symmetrical sources.
