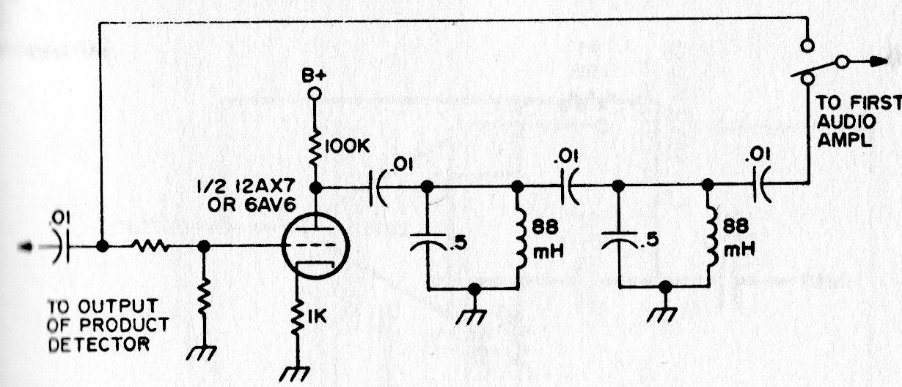

This tube circuit is from an 80's documentation. The filter is of the selective type and the components R and C determine the operation frequency. The voltage + B must be of the order of at least 150 V.
| Clique na imagem para ampliar |
Ultra Simple Tube Filter (CB20087E)
- Details
- Written by: Newton C. Braga
