Single zener regulator (CB20296E)
- Details
- Written by: Newton C. Braga

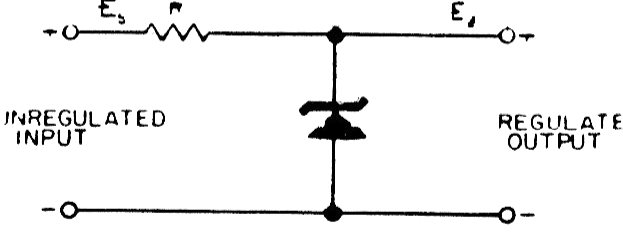

This is the simplest configuration of a voltage regulator with a zener diode. The resistor must be calculated for the maximum output current and the zener diode without load.
