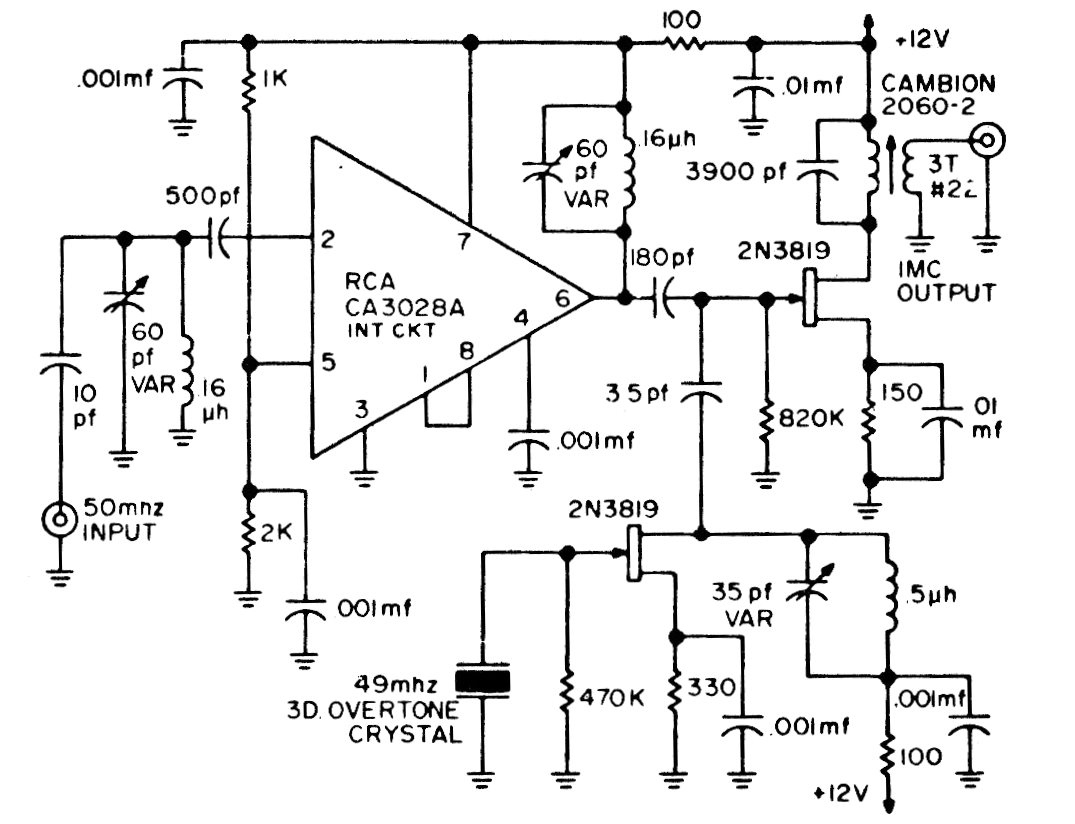

With this circuit it is possible to tune the signals in the 50 MHz band in a common AM receiver around 1 MHz. Information about the coils is not given and the integrated circuit used is uncommon nowadays.
| Clique na imagem para ampliar |
50 MHz Converter (CB20254E)
- Details
- Written by: Newton C. Braga
