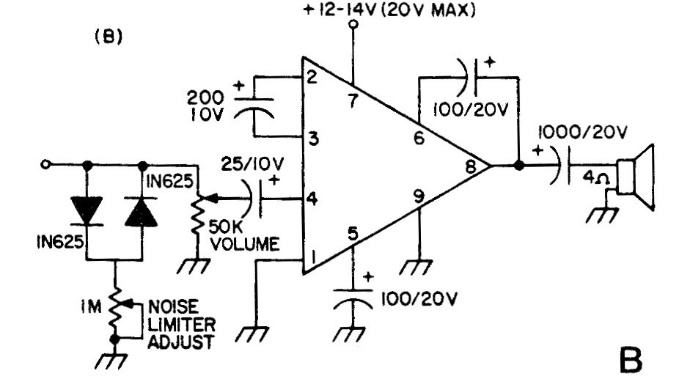

6 W Integrated Amplifier (CB20051E)

Details
Written by: Newton C. Braga



The integrated circuit used in this 1975 application no longer exists, and it is also not indicated in the original diagram and must be of the TAA series by the diagram.




| Clique na imagem para ampliar |
