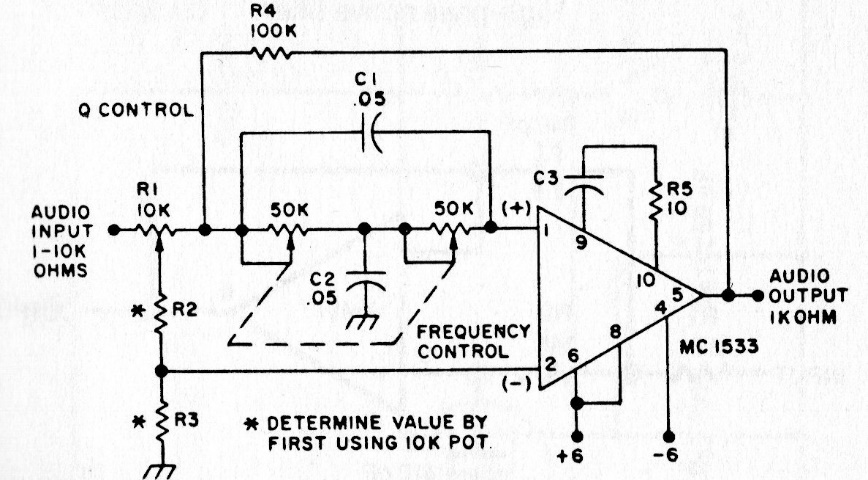

This configuration was found in an old American documentation from the 80's. The circuit admits more modern operating equivalents. The power supply must be symmetrical and as an additional critical component we have the double potentiometer.
