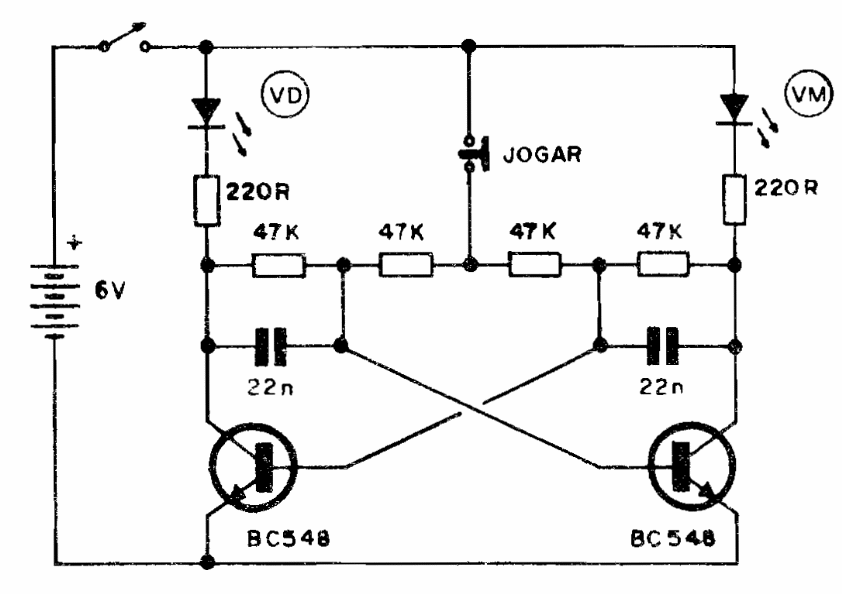

This simple transistorized game that appears in other versions in this section and website, was found in a publication from the 80's. The circuit can be powered with 9 V also by changing the resistors from 220 ohms to 470 ohms.
