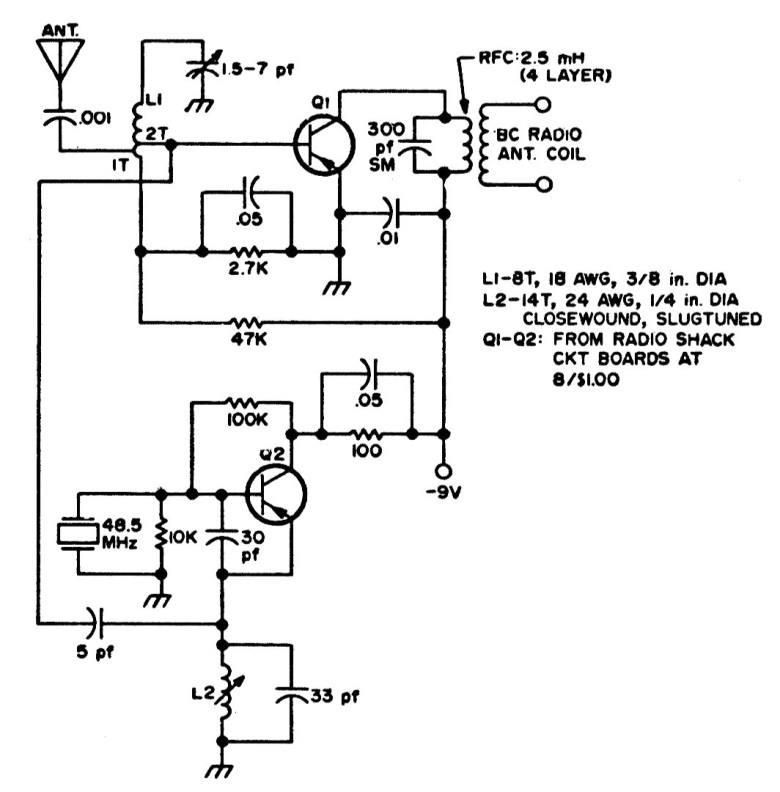

With this circuit it is possible to receive signals in the 2 m (150 MHz) range on a pocket AM radio. The circuit was found in documentation from the 1980s. The coil data is provided along with the diagram. RF transistor like the BF494 can be used.
