Shield DTL and MOS DTL (CB19756E)

Details
Written by: Newton C. Braga

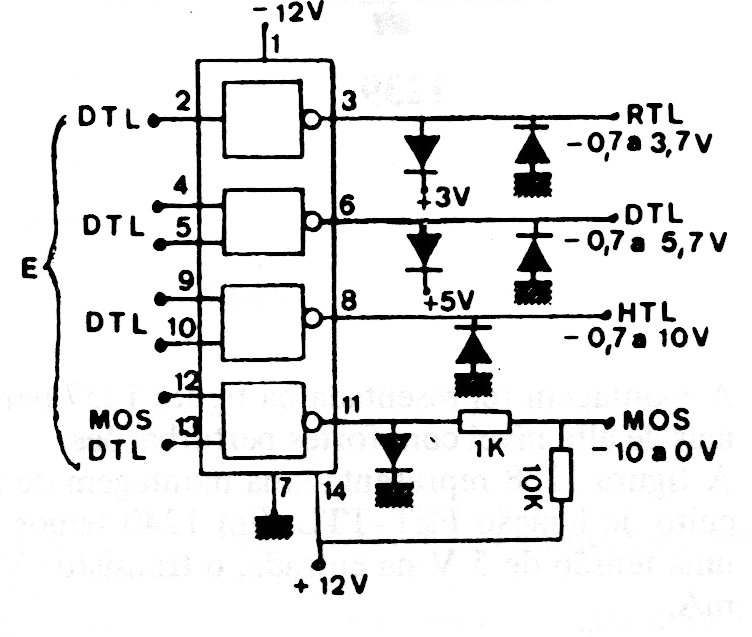

This circuit uses a Motorola component from the 90's and is suitable for the diode-transistor logic of the time. The circuit can be adapted to use more modern equivalent logic.




| Clique na imagem para ampliar |
