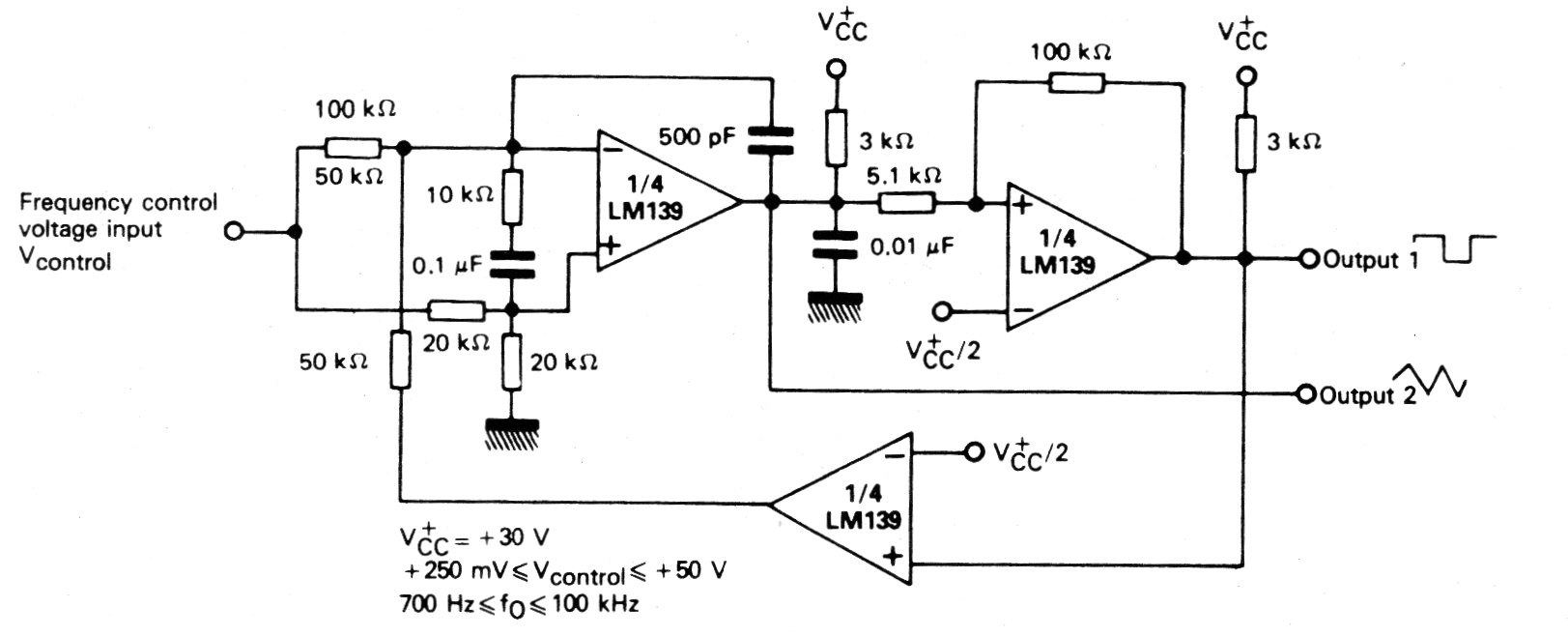

This voltage-controlled oscillator or VCO has rectangular and triangular signal outputs. The voltage comparator used is still common in our times, despite the circuit being an old documentation. The power supply does not have to be symmetrical and the characteristics of the circuit can be changed by changing capacitors.
| Clique na imagem para ampliar |
