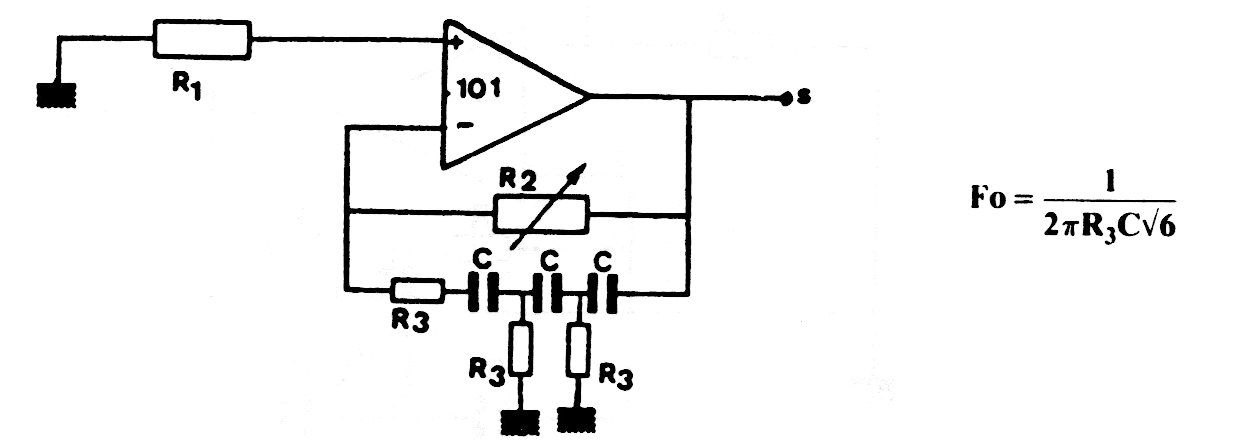

The frequency of this oscillator depends on the capacitors and typical values for the resistors are 10 k ohms. The circuit is from an old documentation and has the formula for the frequency given next to the diagram. The power supply must be symmetrical from 6 to 12 V according to the operational used.
