The diodes of this circuit are general-purpose, and the base resistors are typically between 2k2 and 10k. The voltage depends on the logic and the transistor used is for general use. The No-OR function works as a shield.

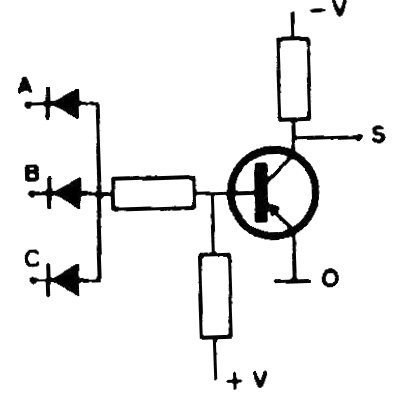

NOR function with Transistor I (CB19890E)
- Details
- Written by: Newton C. Braga
