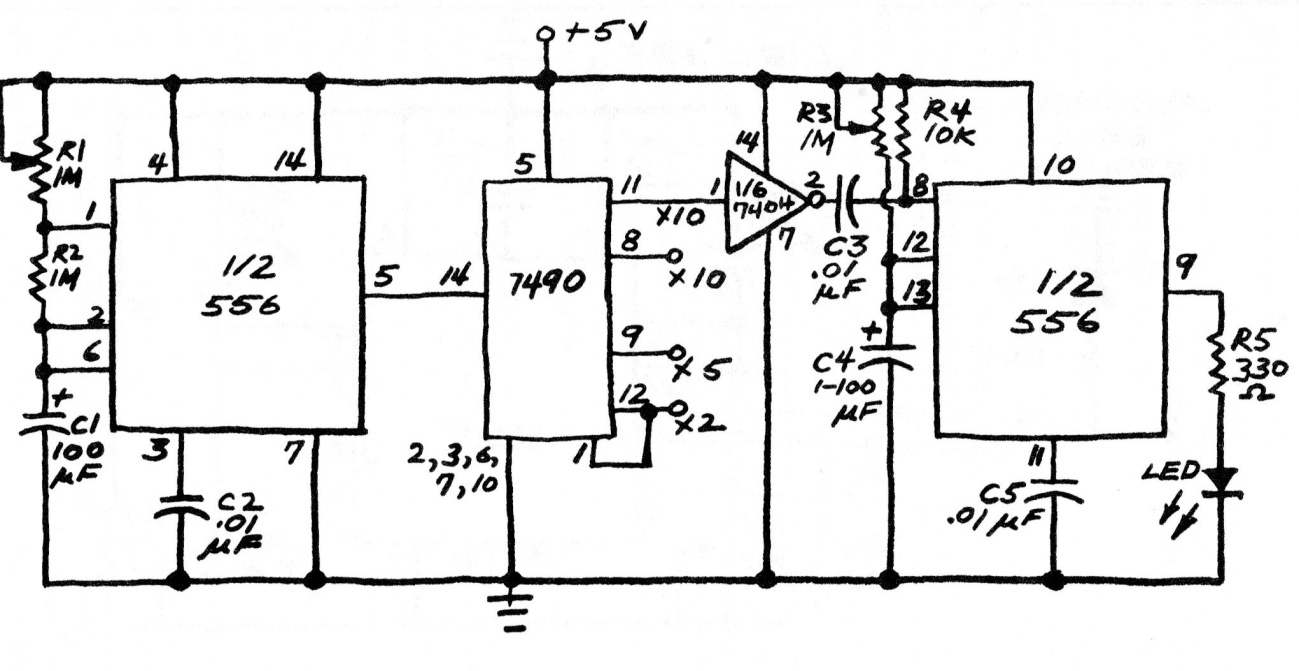

The 556 consists of a double integrated circuit 555, which can be replaced by them in this circuit. The supply is 5 V, and the circuit can even be used in applications such as shield. At the output, a power output can be used to activate the relay. The time adjustment is made in R1. The circuit is from 1991 documentation.
