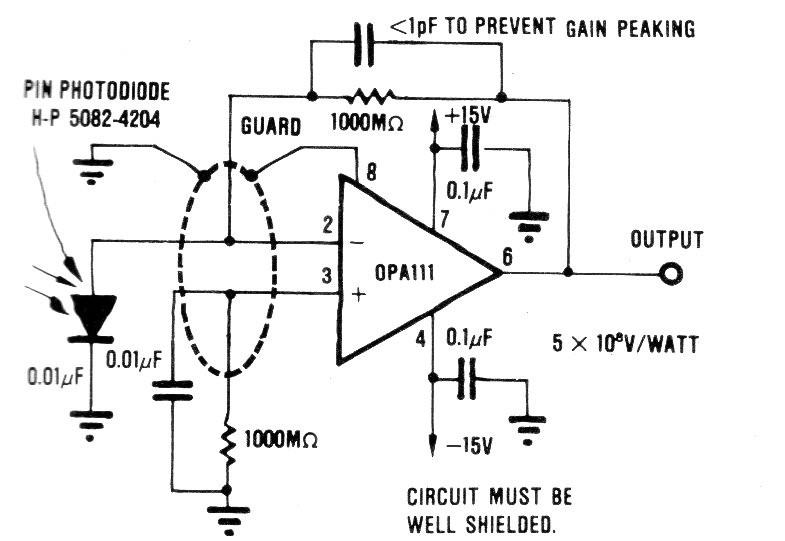

This circuit is from documentation from the 80s, so it makes use of an operational amplifier that is uncommon nowadays. Equivalent can be tested, and the circuit requires the use of a symmetrical power supply. Shielding care of the input cables must be provided.
