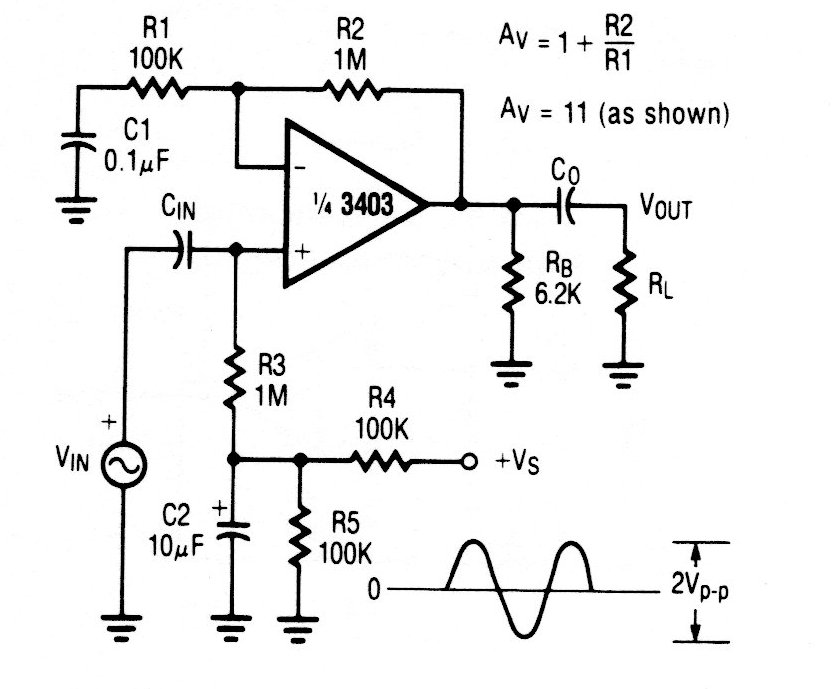

This well-crafted configuration makes use of the 3403, an operational amplifier from Raytheon that is uncommon today. However, a similar circuit can be designed based on modern operational equivalents. The power supply must be symmetrical.
| Clique na imagem para ampliar |
