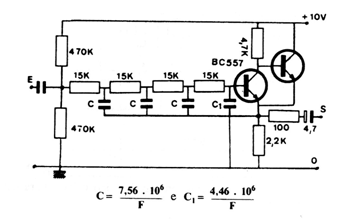

This filter of two transistors has the cutoff frequency determined by the formulas next to the diagram. The supply is made with a voltage of the order of 10 V. The circuit is from an old European documentation.
Low Pass Filter with Transistors (CB19699E)
- Details
- Written by: Newton C. Braga
