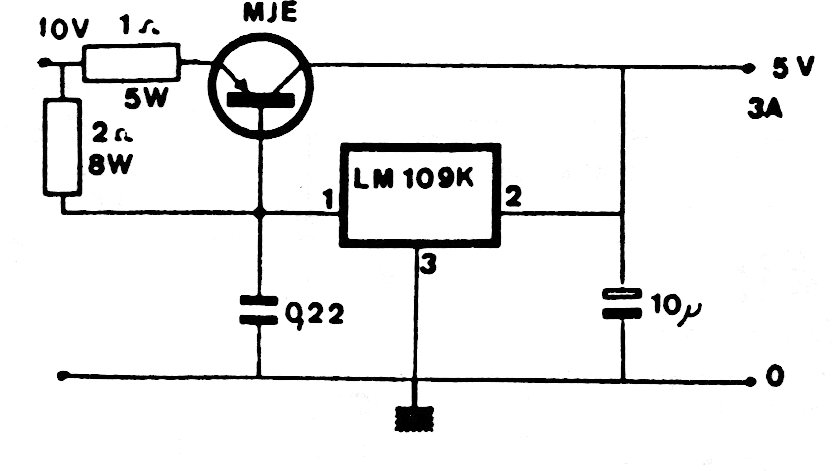

5 V x 3 A Regulator (CB19128E)

Details
Written by: Newton C. Braga



The power transistor of this circuit can also be the TIP42 mounted on a good heat sink. The circuit is from old European documentation and the integrated circuit used is not very common today.




| Clique na imagem para ampliar |
