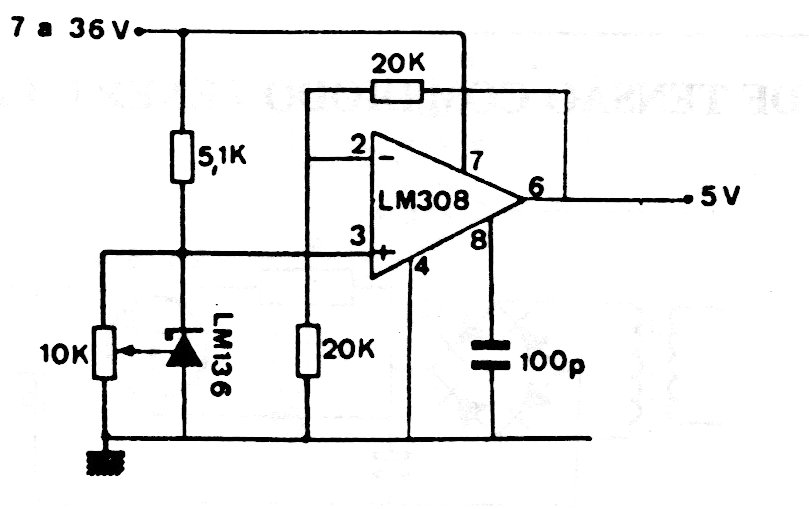

We found this circuit in documentation from the 1980s. The operational amplifier admits equivalent and the circuit used as a voltage reference is also uncommon today with more modern equivalent types.
| Clique na imagem para ampliar |
5 V Voltage Reference (CB19605E)
- Details
- Written by: Newton C. Braga
