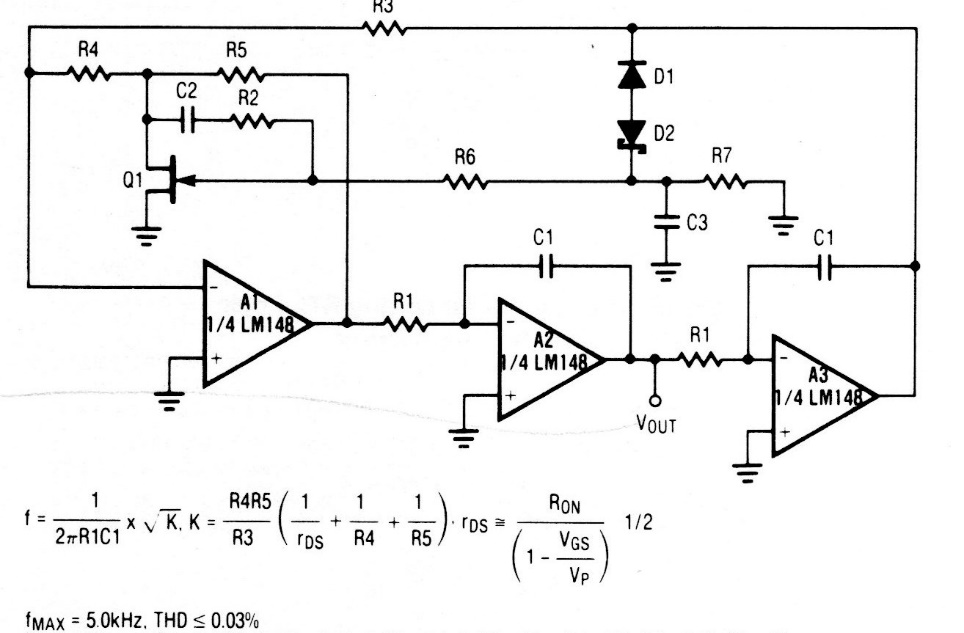

This circuit can use the LM148 and its more modern equivalents, generating a sinusoidal signal whose frequency can be calculated by the formula next to the diagram, depending on the components used. The power supply must be symmetrical.
