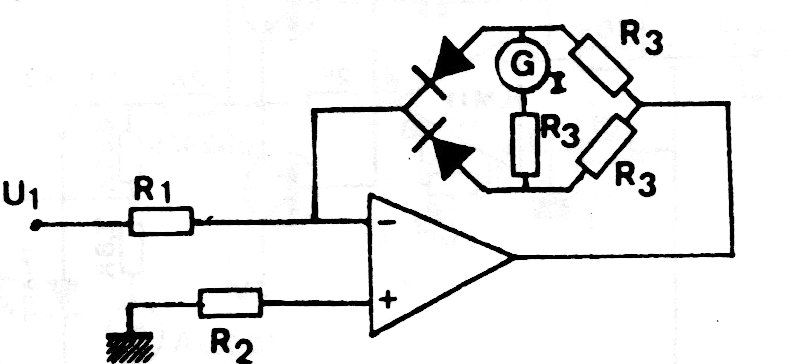

Instrumentation Rectifier (CB19750E)

This circuit can make use of almost any operational amplifier and the diodes are for general use. It is intended to excite an analog instrument.

| Clique na imagem para ampliar |
