FET Micro Transmitter (CB19440E)

Details
Written by: Newton C. Braga

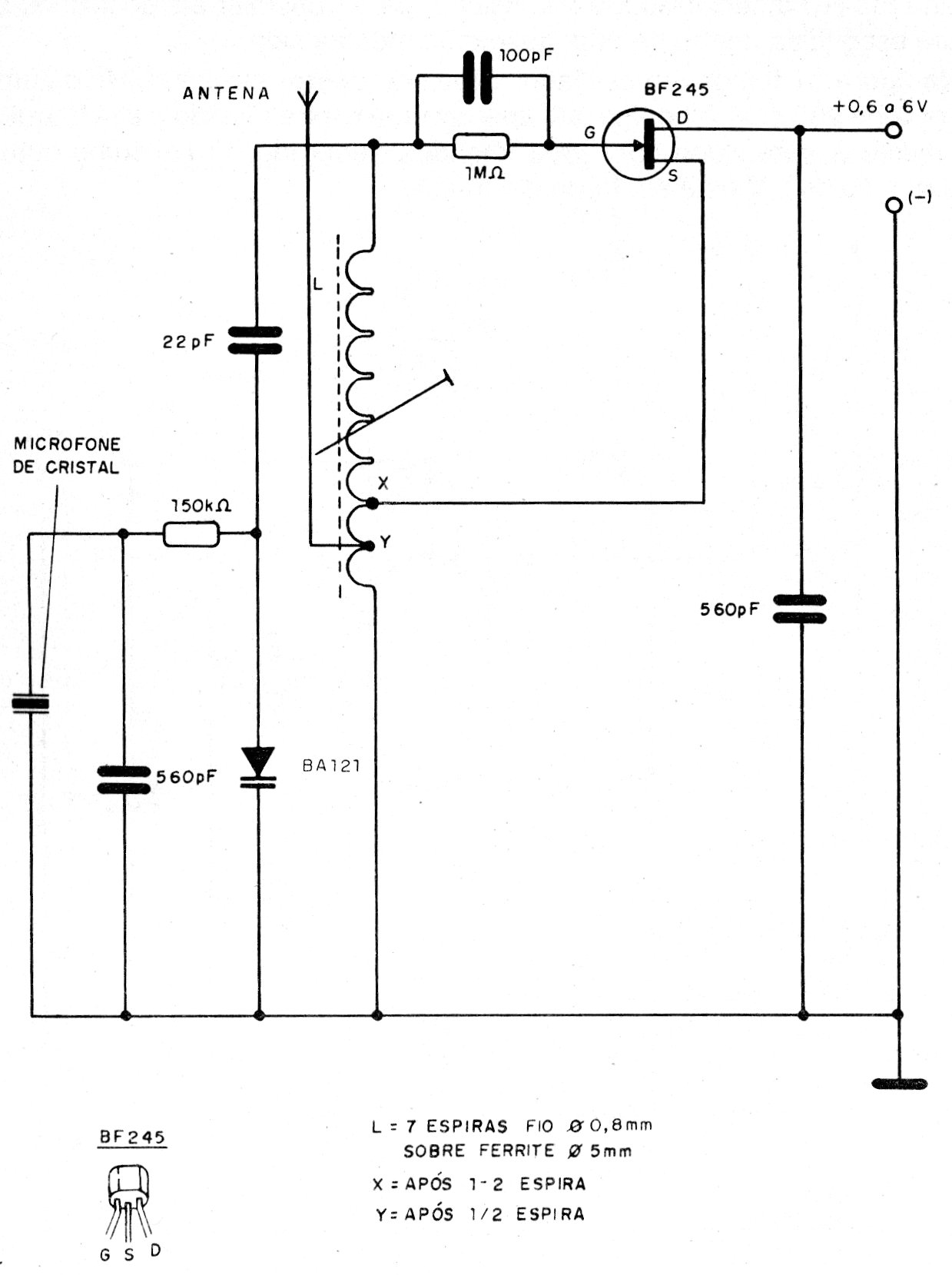

This FM micro transmitter was found in an 80s spy book. The circuit can work with equivalent FETs and is powered by a voltage of 0.6 to 6 V. Details of the coil are given next to the diagram.




| Clique na imagem para ampliar |
