5 V x 1 A 723 Regulator (CB19961E)

Details
Written by: Newton C. Braga

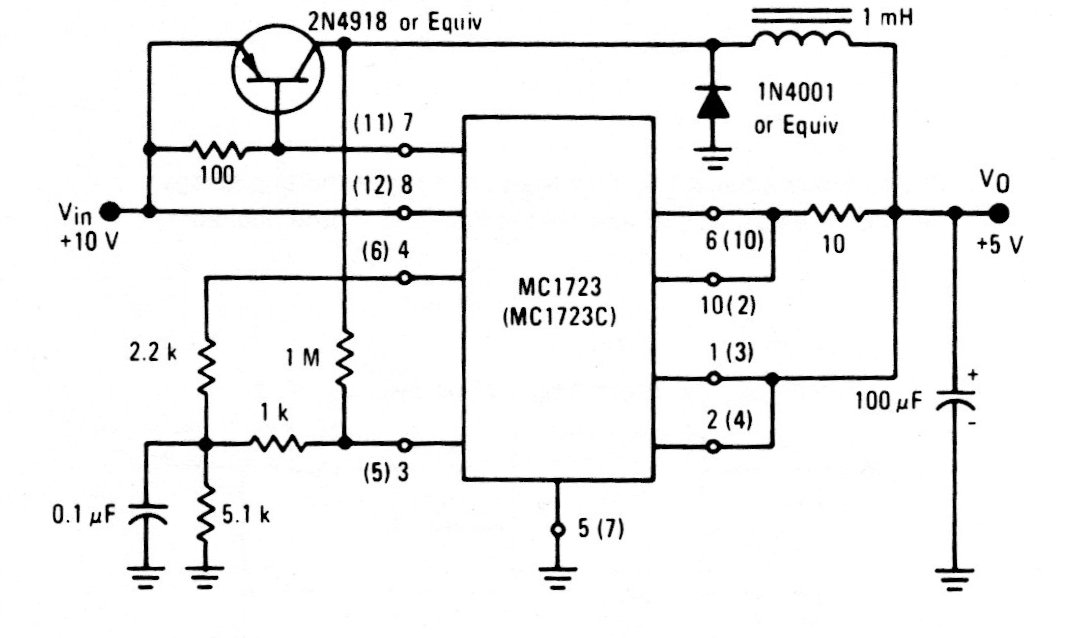

This circuit is from a documentation about the MC1723, Motorola equivalent of the well-known 723. The transistor admits equivalent and must be mounted in a good heat sink.
