Current Source to Voltage Source Converter (CB19951E)

Details
Written by: Newton C. Braga

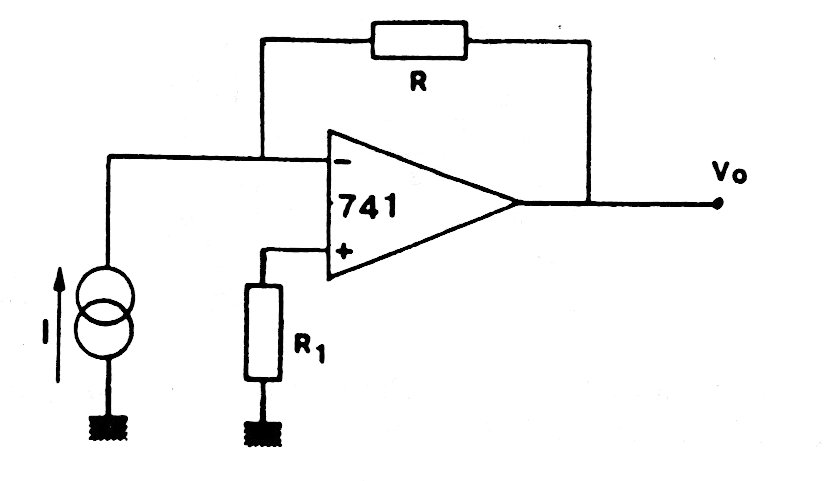

This circuit converts a constant input current intensity into a voltage given by Vo = -R x I. T1 must be equal to R. The operational admits equivalent.
