Lambda Diode (CB19852E)

Details
Written by: Newton C. Braga

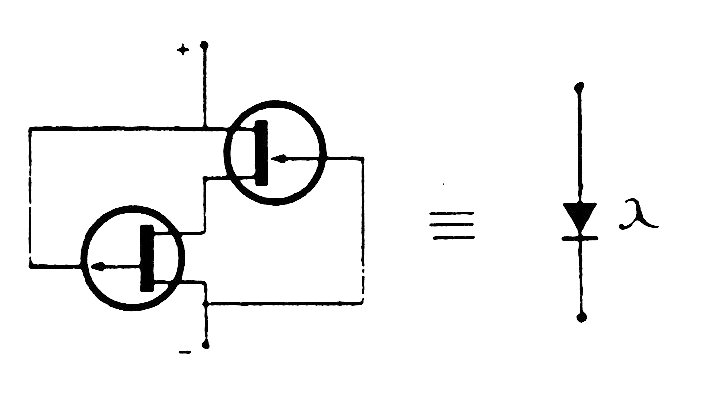

This configuration elaborated with common junction FETs has a characteristic like that of tunnel diodes and can operate at very high frequencies.
