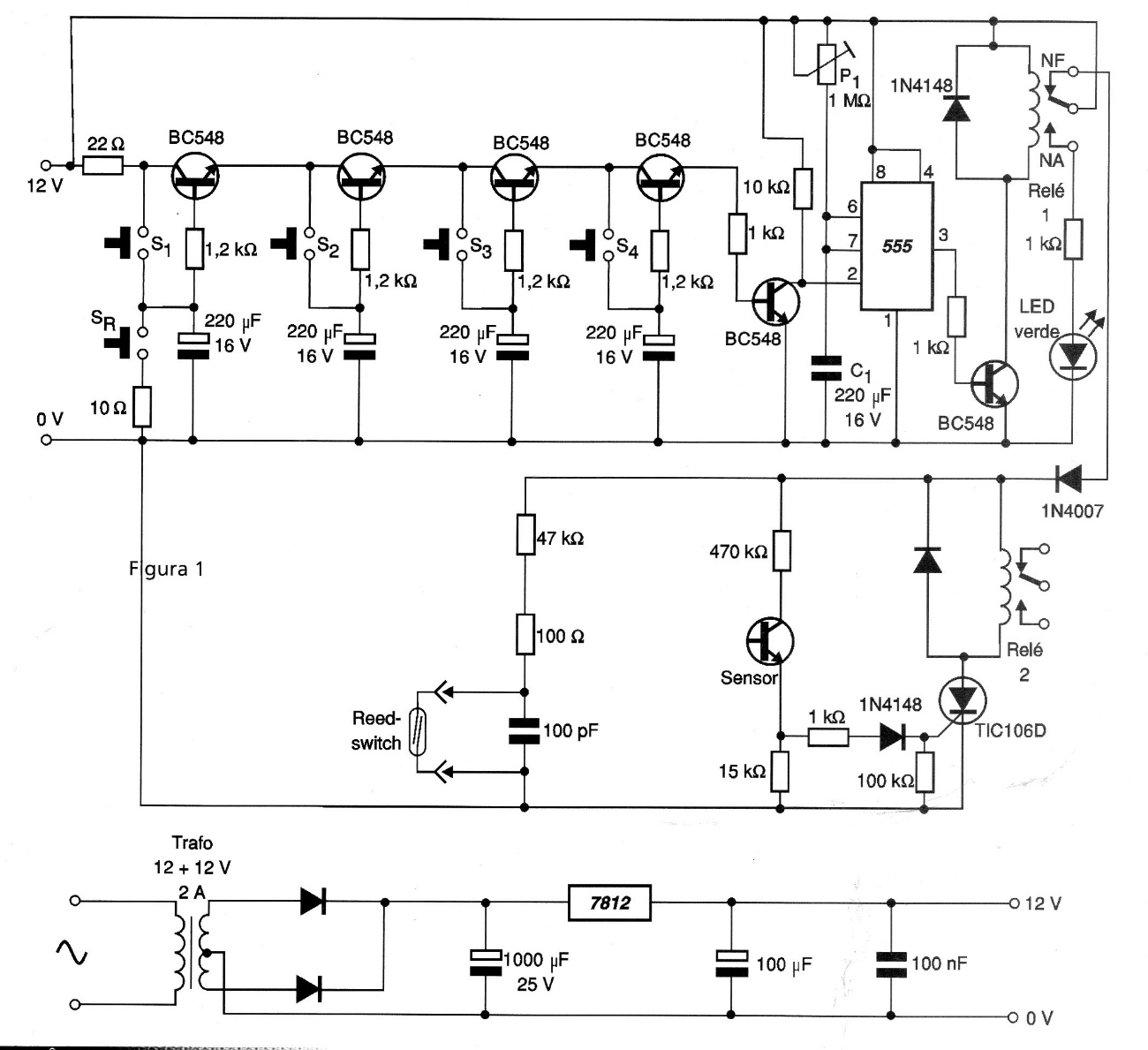

Disabling this circuit from a 2002 documentation can only be done by pressing 4 keys in a correct sequence. The circuit can be powered by 12 V of battery or source and the timing is done through a 555 with P1 programming. Reed sensors can be connected to any number in parallel.
| Clique na imagem para ampliar |
