Simple Neon Indicator (CB18163E)

Details
Written by: Newton C. Braga

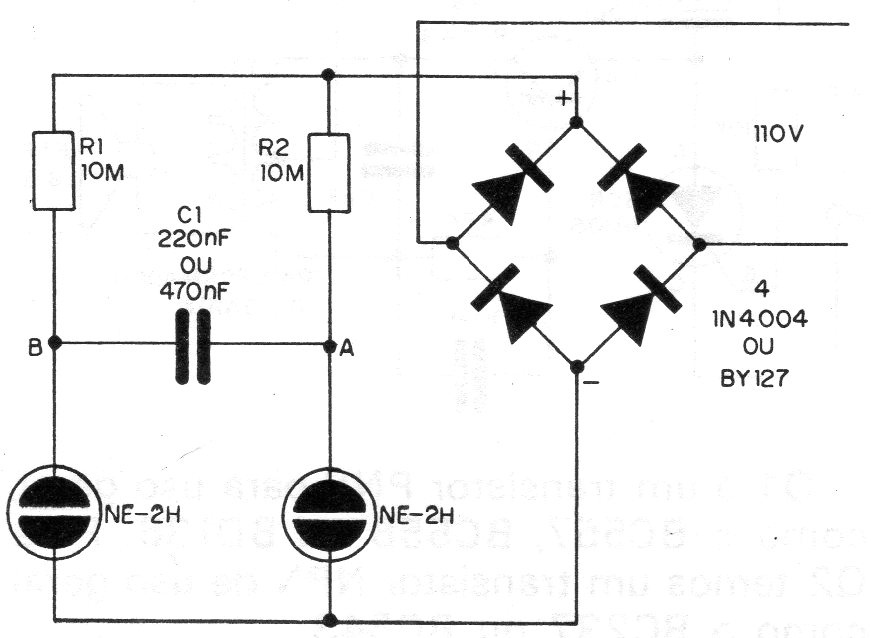

This simple circuit consists of a blinker for a very low consumption neon lamp, found in a 1982 documentation. The circuit can be powered by 110 V for 1N4004 diodes or 220 V for 1N4007 diodes.
