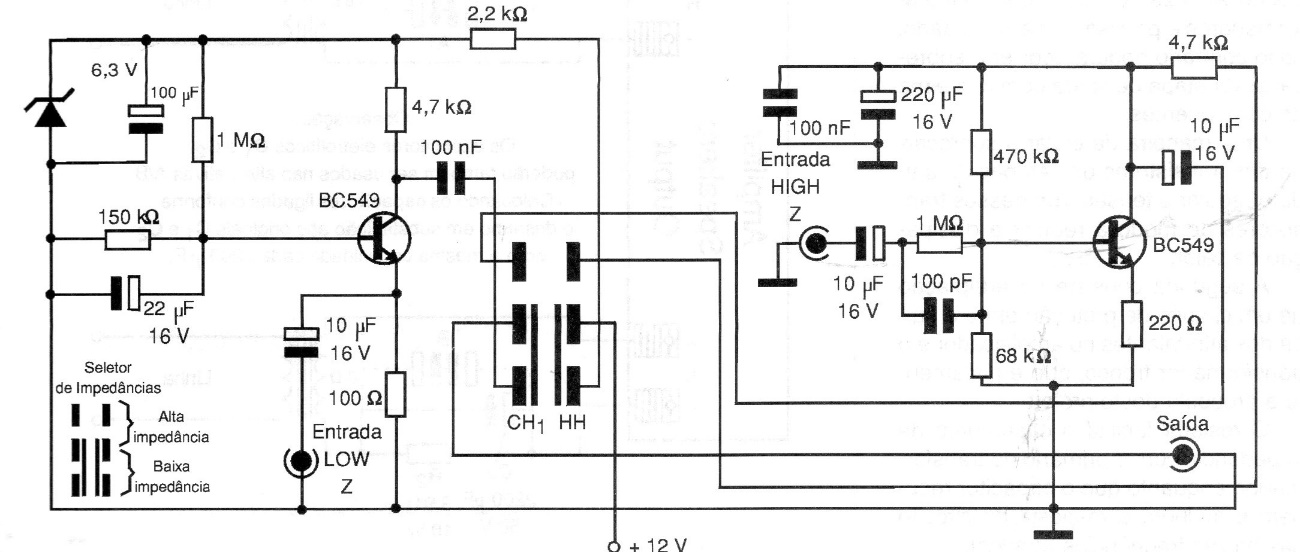

This 2000 circuit can be used to match the low impedance of a microphone to the high input impedance of an amplifier or vice versa, depending on the position of the switch. The circuit must be powered by voltages from 9 to 12 V and has a low current drain.
