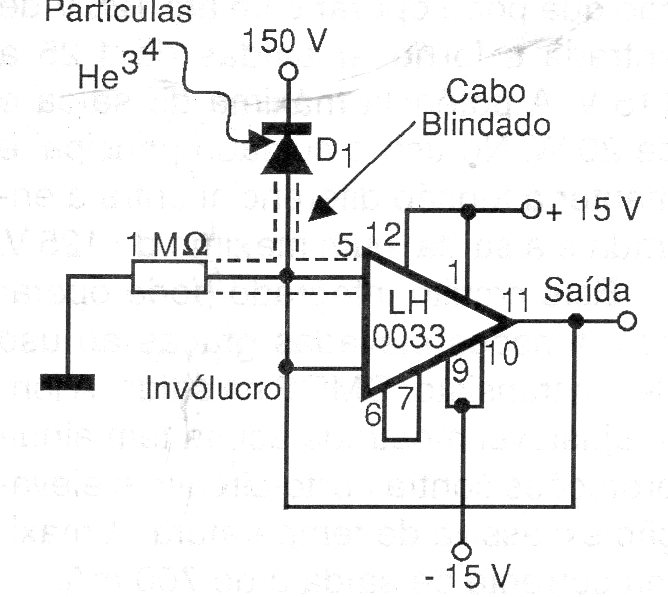

This circuit makes use of an unusual component which is a large surface diode that can be used to detect particles. A pulse is emitted when a particle is detected. The operational amplifier used admits equivalents of lower supply voltage. The power supply must be symmetrical.
