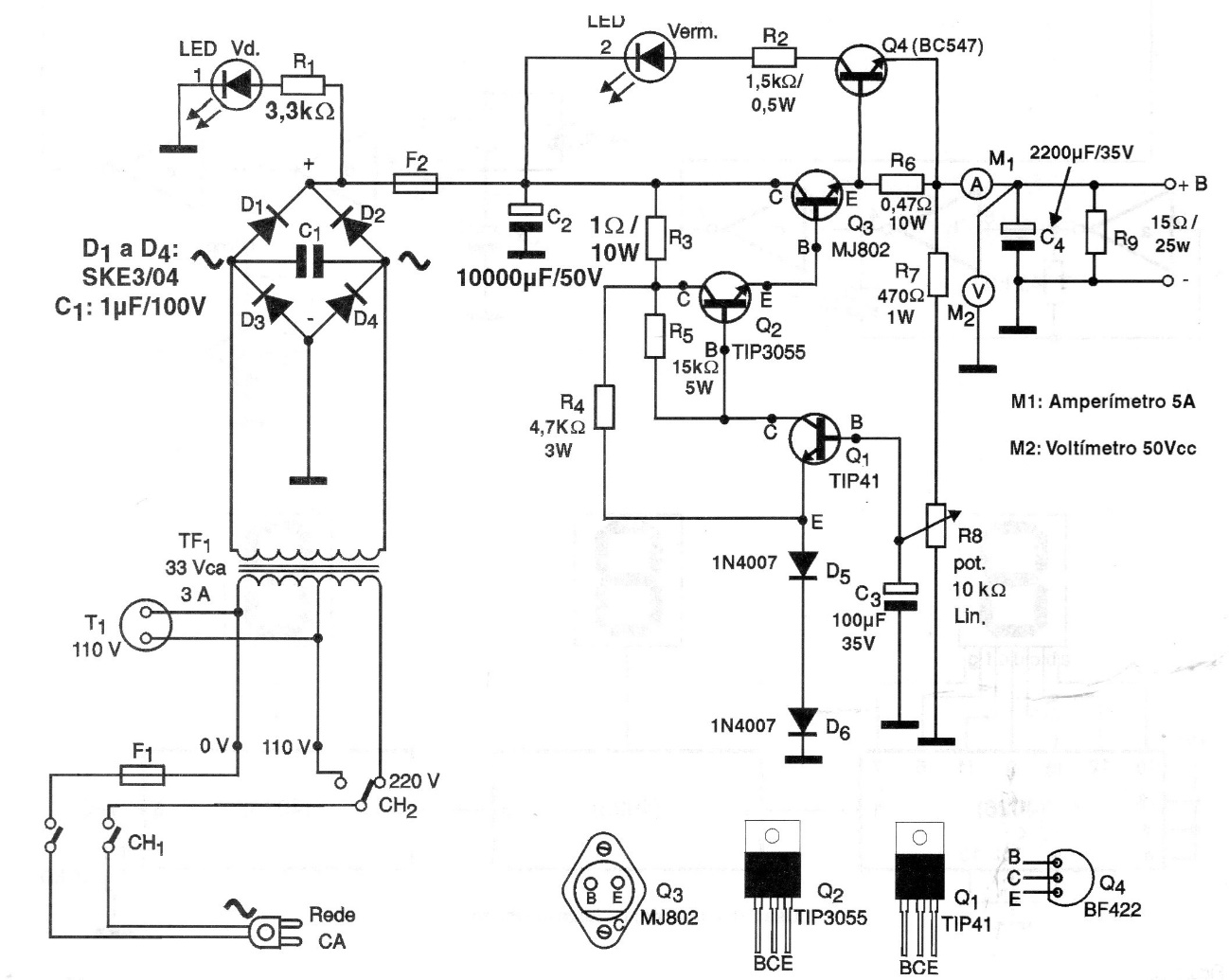

This power supply was found in a 2000 documentation. It can supply currents from 2 A to 15 V and 1 A from 20 to 30 V. The power transistors must be equipped with good heat sinks and the current and voltage indicators are optional.
