High Fidelity Amplifier (CB954E)

Details: Written by: Newton C. Braga

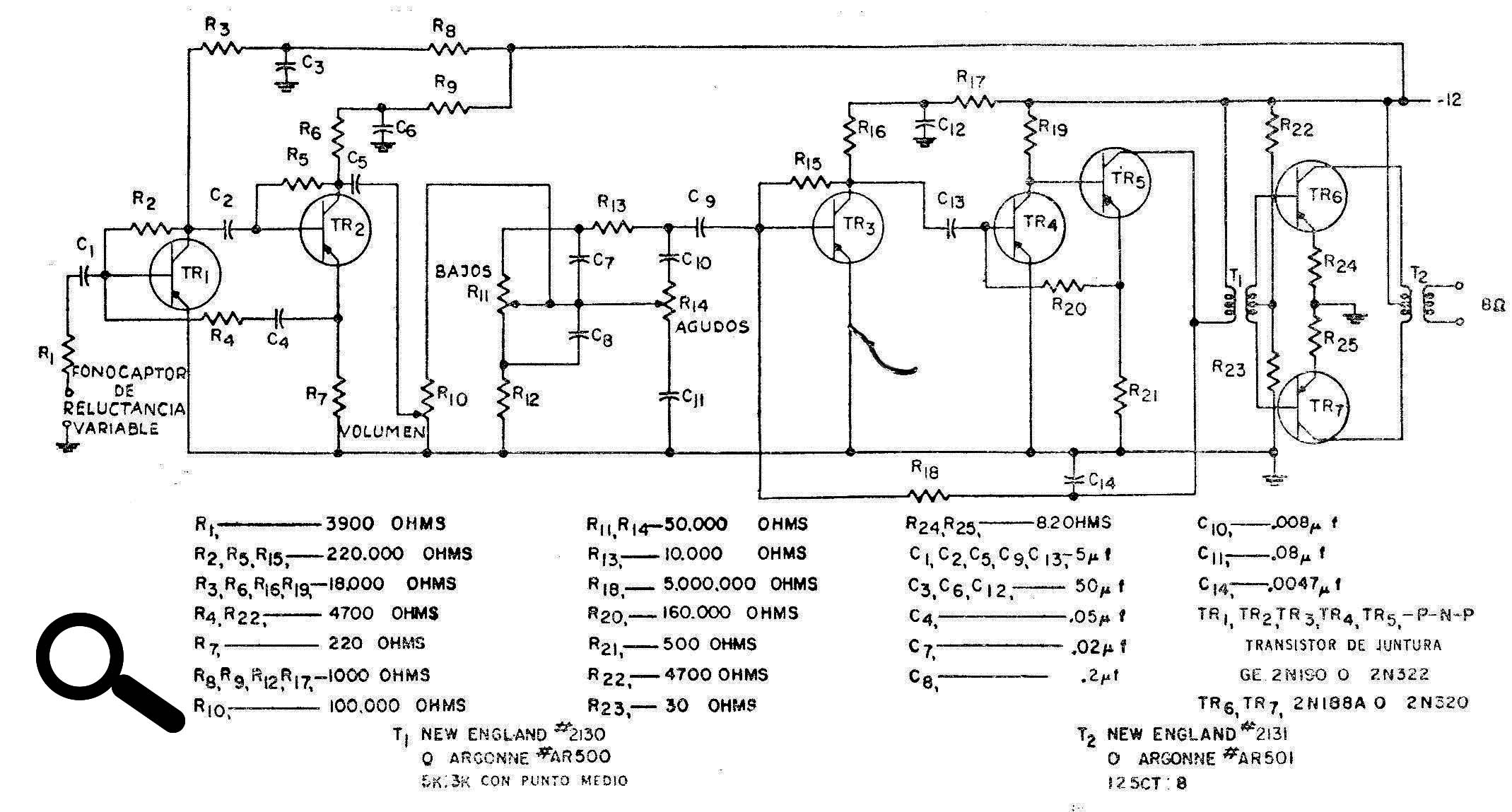

I found tis circuit in na old documentation from 1958. The circuit uses germanium transistor availble that time and hard to obtain today. The circuit is indicated for phono applications using variable reluctance transducer.
