Four Transistor Phono Amplifier (CB951E)

Details
Written by: Newton C. Braga

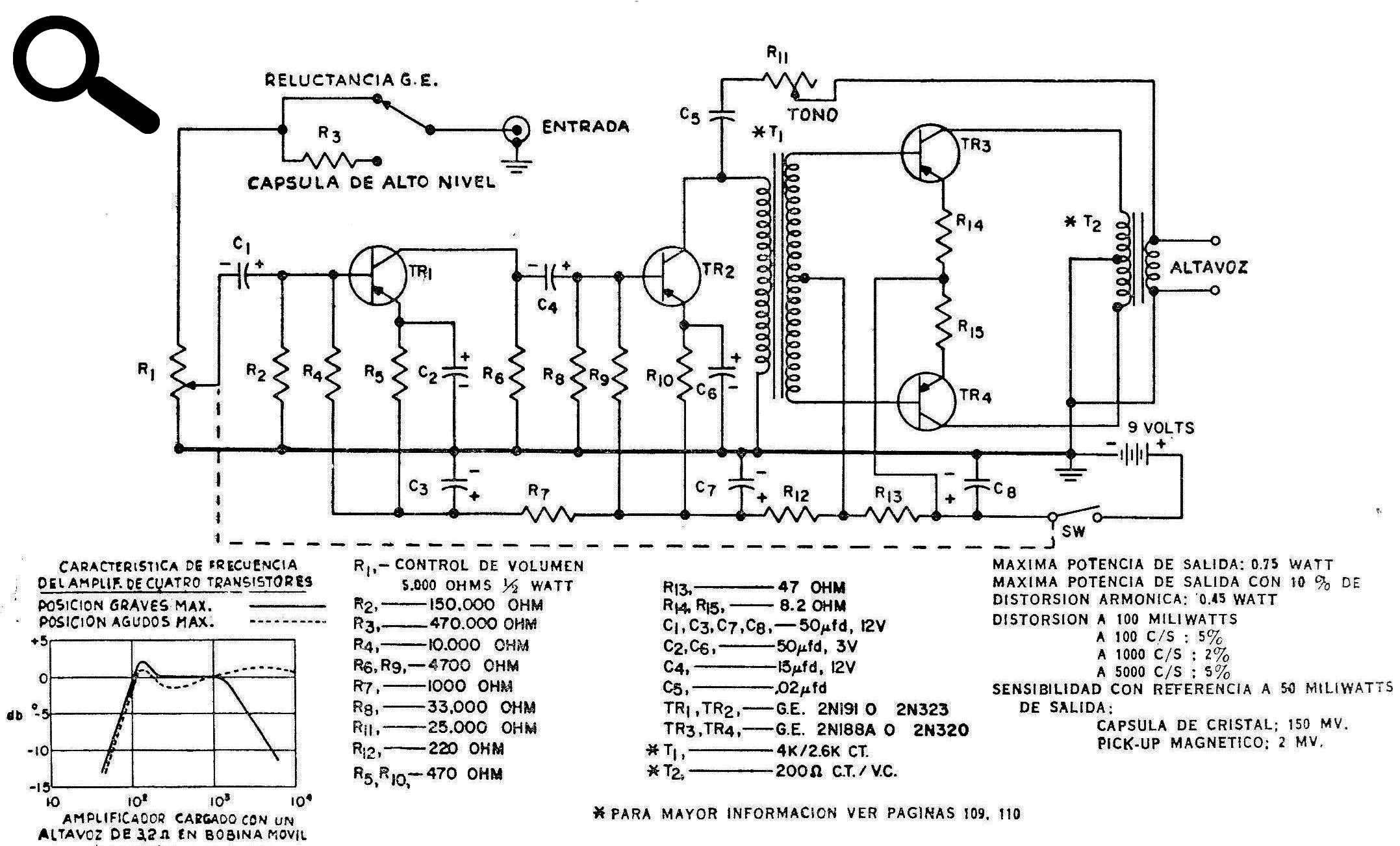

This old fashioned transistor amplifier was found in a publication of the year 1958. Transformer are the critical components in the circuit and power comes from 6 D cells.
