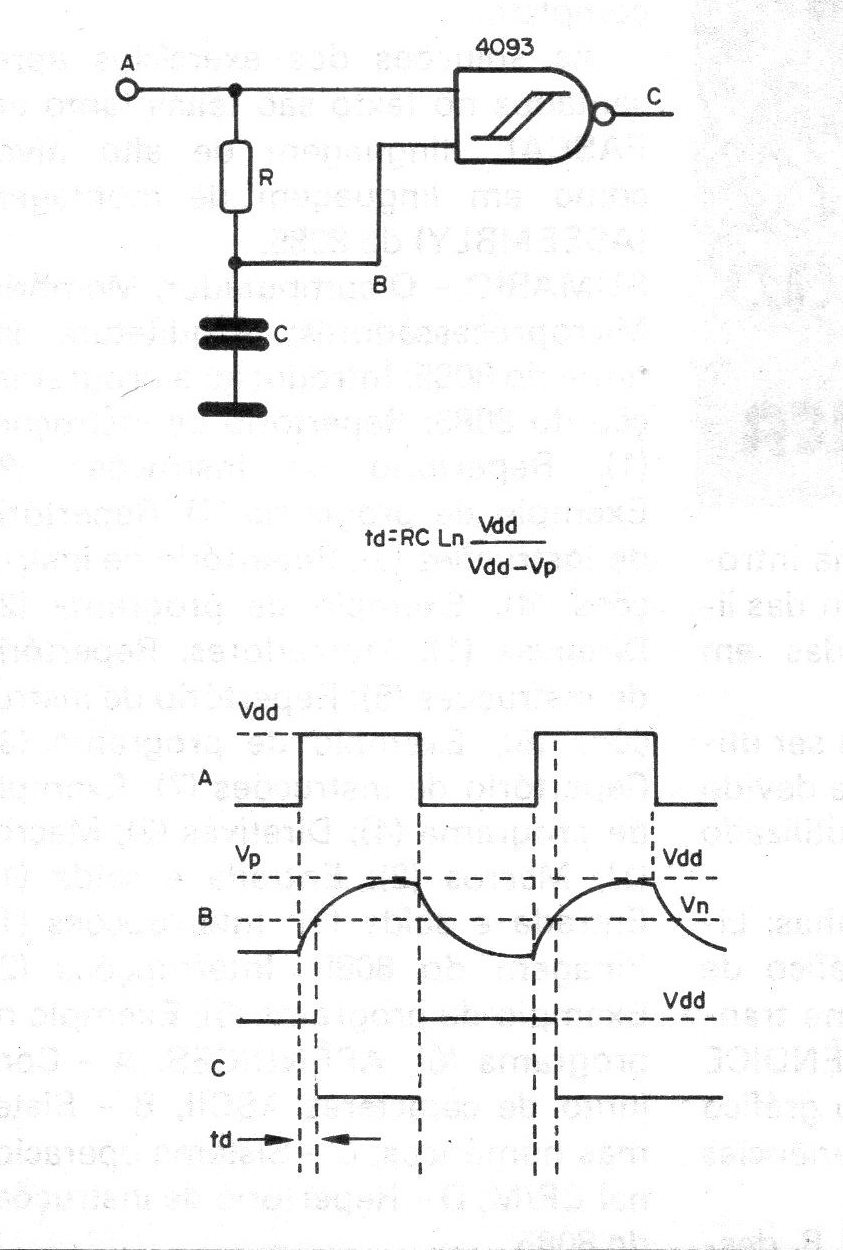

With a NAND trigger we can achieve pulse delay for digital applications in a relatively simple way, as shown in the figure. The delay is calculated as a function of RC and Vp (positive switching voltage) according to the formula in the diagram. The waveforms are also given in the diagram.
