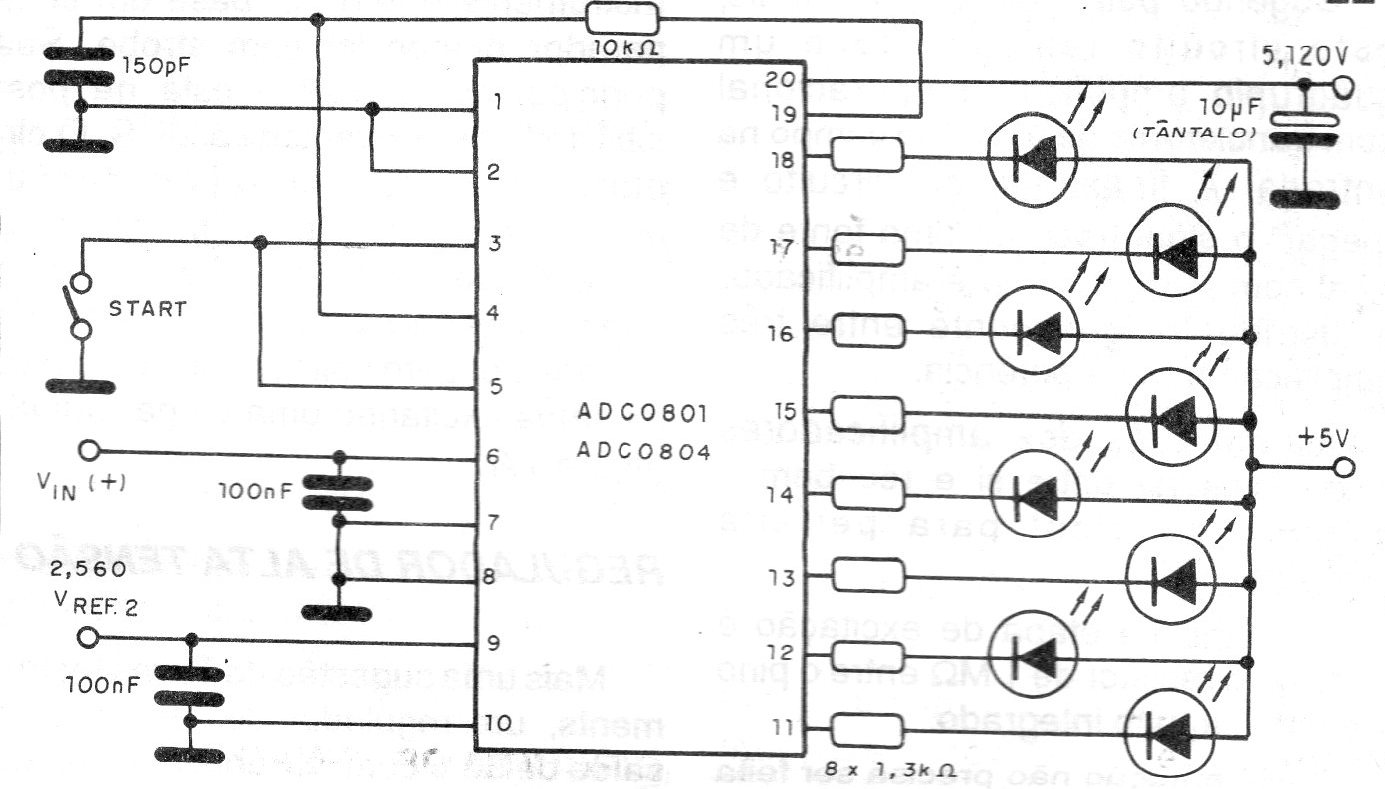

This circuit was found in Intersil's 1992 documentation consisting of a test for ADc0801 and ADC0802. The circuit drives LEDs according to the level of the input voltage, thus enabling a check of the component's function. The supply must be made with voltages from 5 to 12 V.
| Clique na imagem para ampliar |
